Cygnus servo drives have integrated motion controllers and other key functions
For compactness, advanced motor drives can integrate motion controllers and other key functions into the servo drive. Still, though, the servo drives need versatile real-time control multiple encoders support, and sufficient power output.

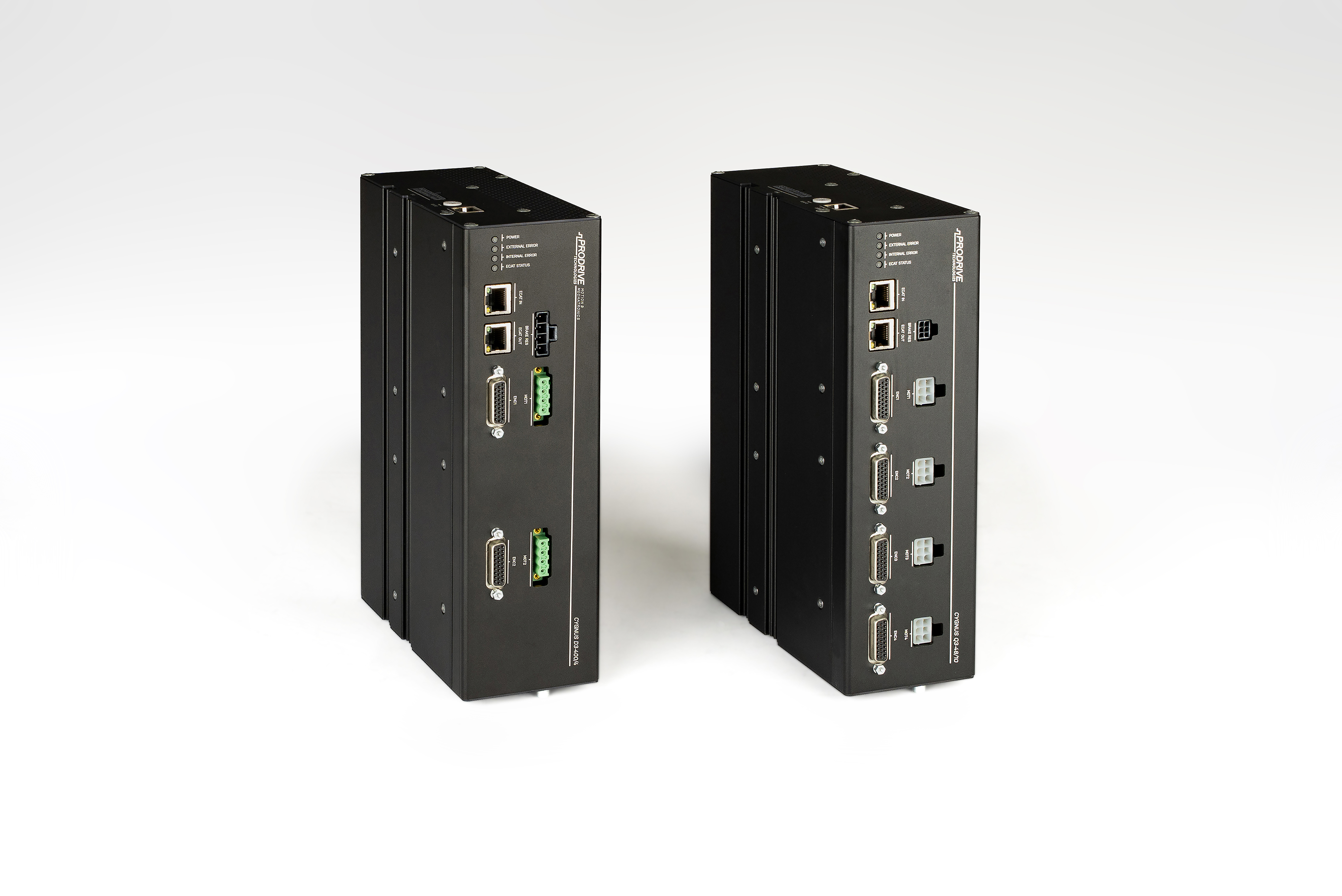

Our Cygnus 2- or 4-axis servo drives have a powerful integrated motion control system and integrated input and output filtering so they need a minimum of external components. They integrate input and output ElectroMagnetic Compatibility (EMC) filters, along with key safety functions like Safe Torque Off (STO) and Safe Brake Control (SBC).
These motor drives can be controlled synchronously across an EtherCAT® network, and work as slave or stand-alone using its internal high-performance controller. The same controller allows you to run any custom control loop made by Matlab®/Simulink®. Cygnus accepts a variety of encoders including incremental (RS422), analog, absolute, SinCos, EnDAT, Hiperface, SSI, BISS-C®, and Hall types. The drives work with any motor type including brushless, brushed, linear, stepper, and voice coil. There are dual and quad motor output versions covering a range from 500 W up to 7 kWPK per axis.

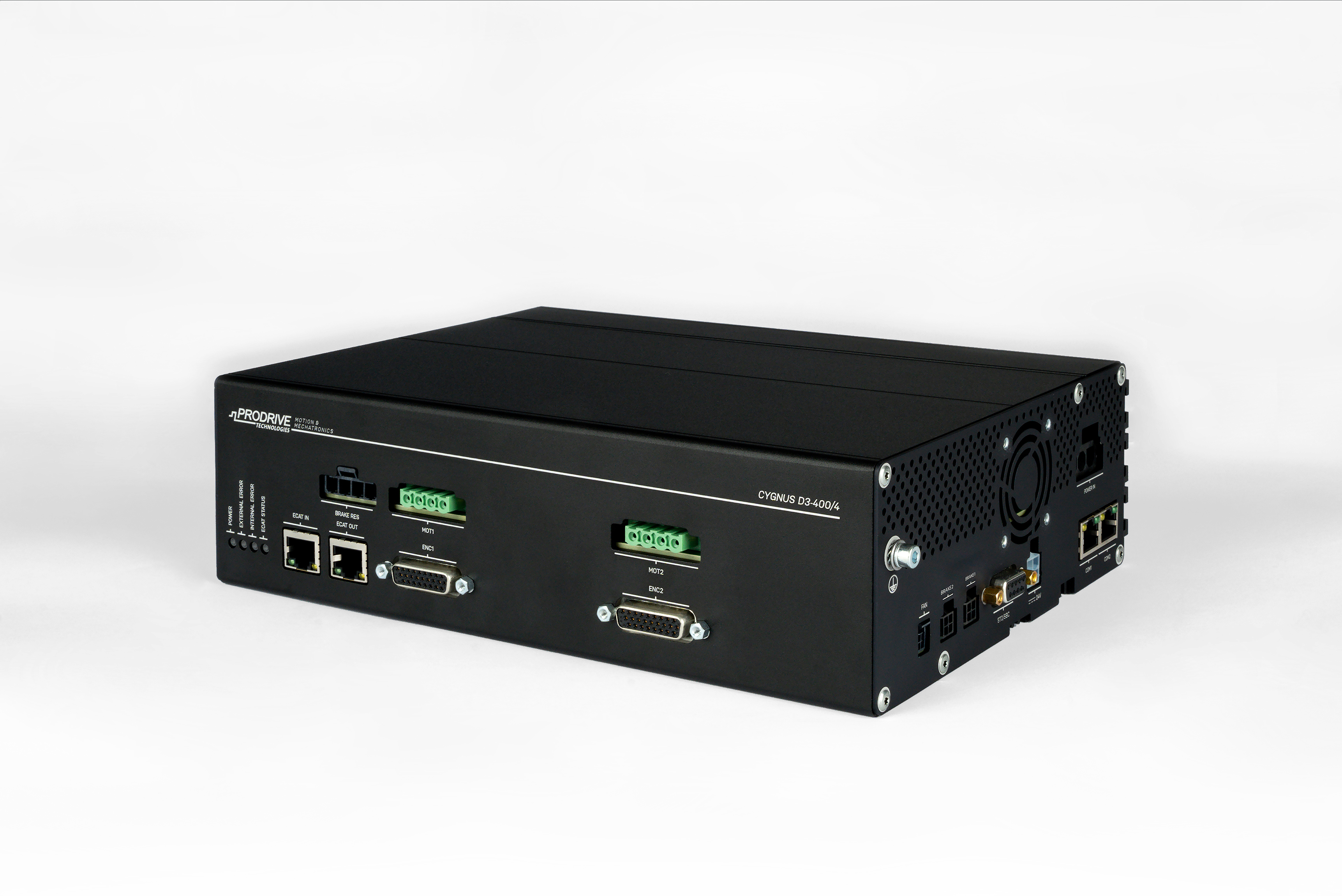

There are two versions with 48 or 400 VDC input voltages and 30 or 10 APK input currents. The Cygnus D3-400/4 (400 VDC input voltage with two motor channels) has an optional matching Quasar B1-400/6 bi-directional power supply with AC-DC rectifier. Quasar increases overall efficiency and saves cost on external brake resistors since it can return the regenerative energy back to the grid with no need to dissipate it.
The drives are fully programmable with our versatile PMP (Prodrive Motion Platform). PMP offers motion applications with powerful and diverse APIs, and real-time control ensures fast and effortless commissioning. There are C++, C#, and Python API versions, and custom real-time code can be generated using Simulink or C++ blocks.
Applications include:

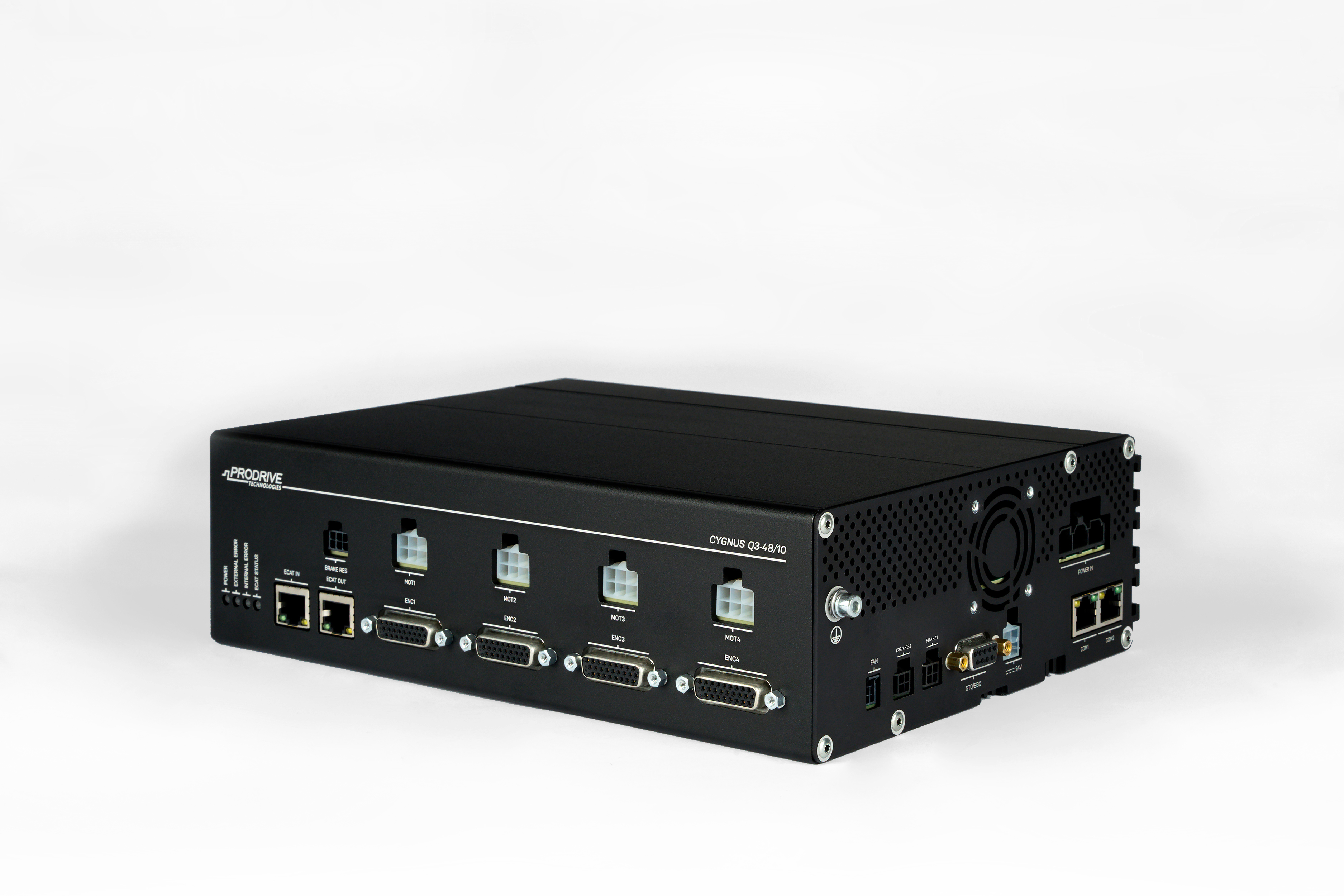

| Power input | Q3-48/10 | S3-400/8 | D3-400/4 |
| Input voltage range | 17 - 54VDC | 390 - 410VDC | 390 - 410VDC |
| Input voltage, absolute max | 60VDC | 450VDC | 450VDC |
| Input current | 30ARMS | 10ARMS | 10ARMS |
| Input current, peak | 50APK | 20APK | 20APK |
| Auxiliary input voltage | 21-26 VDC | ||
| Auxiliary input current | max 3A |
| Number of motor outputs | 4 | 1 | 2 |
| Supported motor types (linear and rotary) | stepper | ||
| 1-phase (voice coil, Brushed) | |||
| 3-phase (PMSM/Reluctance/Induction/BLDC) | |||
| Maximum phase current | 10ARMS | 8ARMS | 4ARMS |
| Peak phase current (1s) | 20ARMS | 16ARMS | 8ARMS |
| Maximum output voltage (line-line, typical) | 0-30VRMS | 0-250VRMS | 0-250VRMS |
| Rated switching frequency | 16-20kHz | ||
| Output frequency | 0-700Hz | ||
| Internal brake resistor | N | ||
| External brake resistor | Y |
| Number of encoder inputs | 4 | 1 | 2 |
| Supported types | Digital quadrature (A/B/I) | ||
| Analog sin/cos 1Vpp (12bit) | |||
| Digital hall (5V) | |||
| EnDAT 2.1/2.2 | |||
| Hiperface DSL 2- / 4-wire | |||
| BiSS C | |||
| SSI | |||
| Maximum signal fequency with no missing pulses | 4MHz | ||
| Maximum baudrate (digital encoders) | 32MHz | ||
| Encoder supply (each input) | 5V 500mA / 10V 500mA |
| Isolated digital inputs | 4 x 24V input (VIH≥11V, VIL≤5V, IIN<15mA) |
| Isolated digital outputs | 2 x 30V / 500mA |
| Non-isolated digital inputs | 3 x TTL (shared with digital hall) |
| Non-isolated digital outputs | 4 x 24V - 2A |
| Analog inputs | 1 x ±10V differential input, 10bit |
| Analog outputs | - |
| Brake outputs | 2 x 24V - 2A |
| Interface | Ethernet / EtherCAT / RS485 (50MBps max) / CAN |
| Update rate | 100Hz - 20kHz |
| Offset error [%of Ipk] | |
| Offset drift [%of Ipk] | |
| Gain error [%of Ipk] | |
| Gain drift | |
| Linearity error [ppm of Ipk] | |
| Current loop, small signal bandwidth (-3dB) | Typical 600Hz – 1kHz |
| Output current noise spectral density @100Hz | |
| Output current noise, rms 1Hz-10kHz | |
| Output current noise, rms 1Hz-20MHz |
| Applicable standard | IEC62061:2010 |
| STO | SIL3 (certification pending) |
| SBC | SIL3 (certification pending) |
| Applicable standard | EC/UL61800-5-1 |
| Pollution degree | 2 |
| Overvoltage category | III |
| IP-protection class / enclosure type | IP20 / open type |
| Maximum altitude during operation | 2000m above mean sea level |
| Applicable standard | IEC61800-3 |
| Input filtering | CM+DM, cat C2, 2nd env. when used with listed power supply |
| Output filtering | Clamped LC filter (dV/dt limiting) + HF output filter |
| Dimensions (WxDxH) | 265 x 195 x 73mm | 265 x 195 x 90mm | 265 x 195 x 90mm |
| Mass (typical) | 3 | 3.3 | 3.3 |
| Operating temperature range | -5°C - 45°C |
| Operating humidity range | 0-90% non-condensing |
| Shock&Vibration | IEC61800-5-1, IEC60068-2-6 (Fc) |
| Lifetime | >10 years |
