PTlink AM4-TL

IoT gateway for sustainable fleet management

Get a quote Tailor this product
Get a quote Tailor this product
  • PTlink AM4-TL (front)

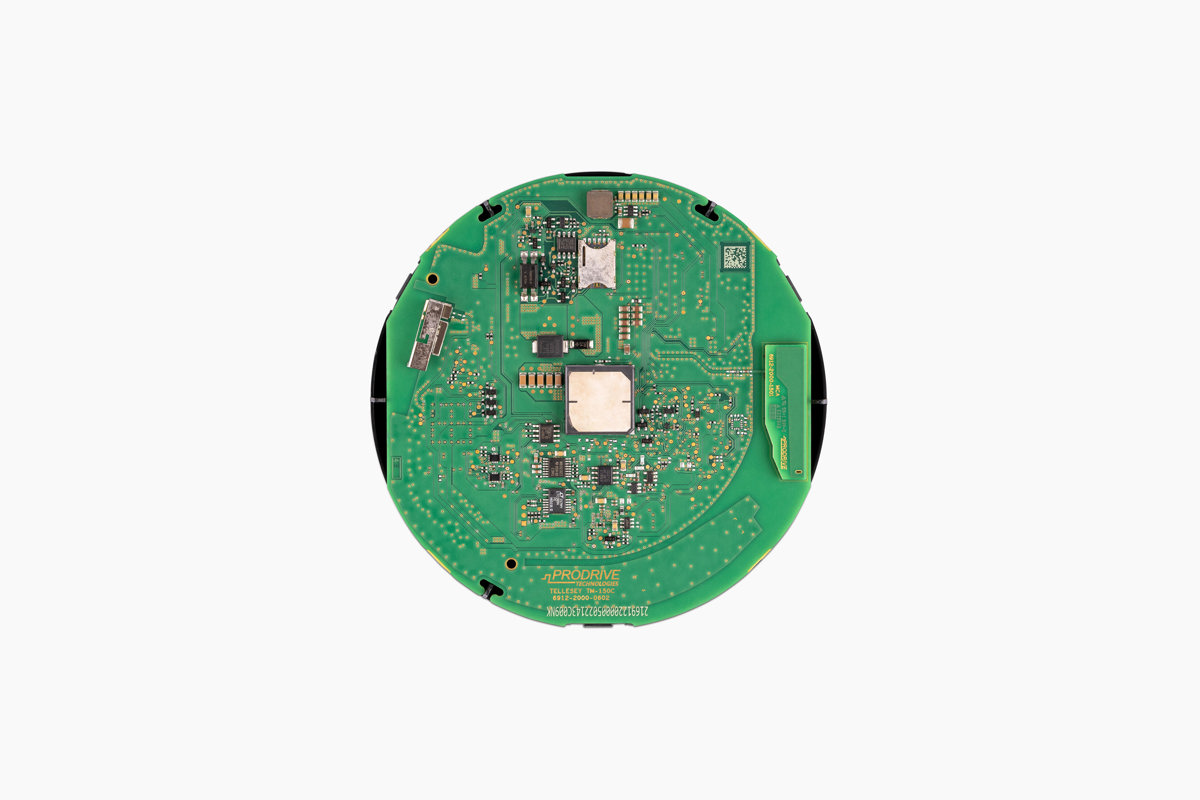

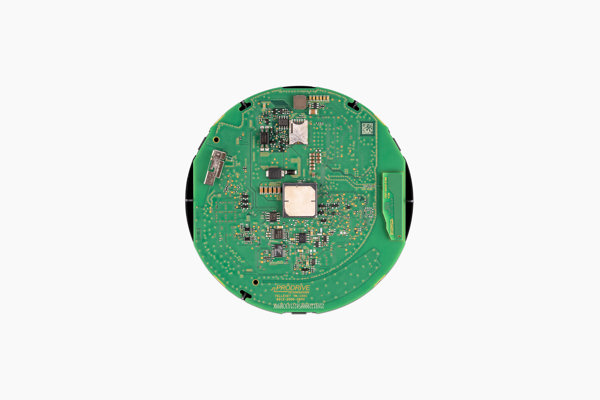

  • (Small) ECI Iot Device Embedded Controlls & Industrial ECS (5)

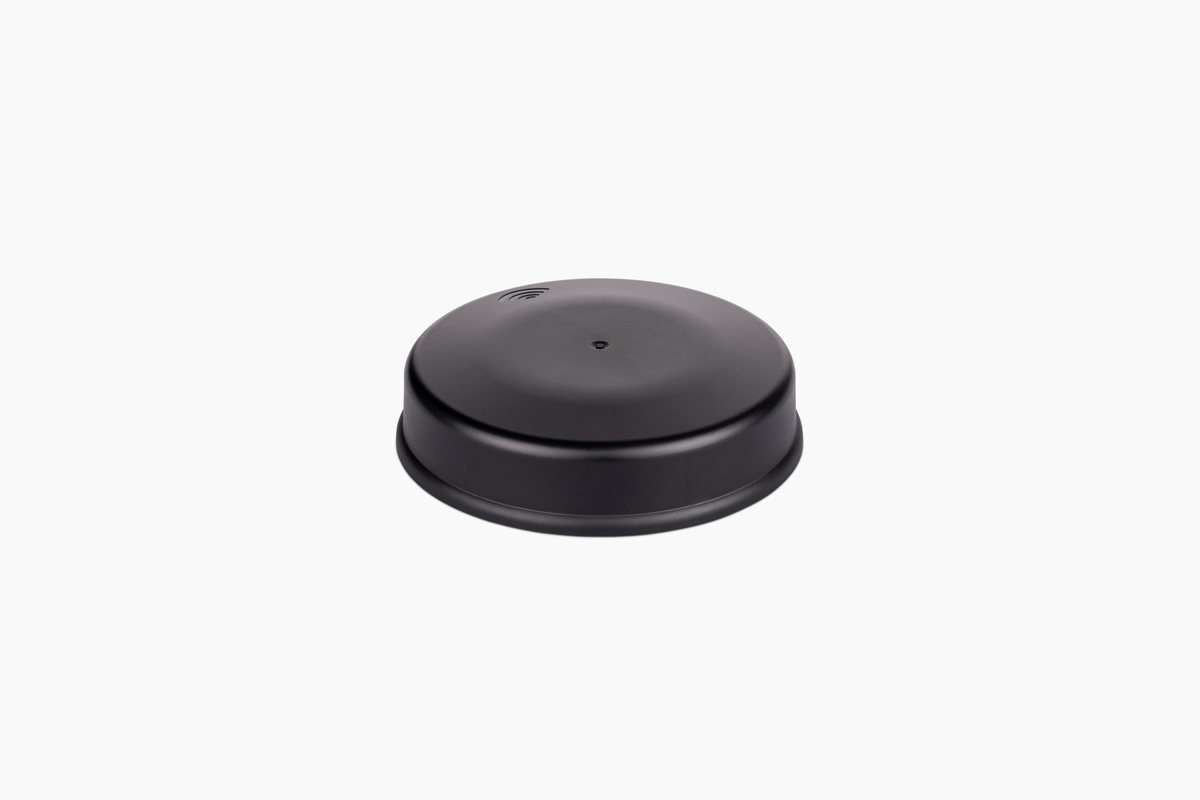

  • (Small) ECI Iot Device Embedded Controlls & Industrial ECS (3)

AM4-TL Vehicle IoT Gateway delivers real-time visibility to enable smarter, more sustainable warehouse operations. Its compact design with built-in antennas ensures easy integration without complex installation, while maintaining reliable connectivity. By supporting energy optimization, asset tracking, and streamlined logistics, the gateway empowers efficient, data-driven decision-making.

  • IP69K (4).png

    IP69K

    Maximum durability and reliability under extreme environmental conditions

  • Building Block (1)

    Comprehensive BSP

    Fully integrated Board Support Package (BSP) for rapid development

  • Cost Optimized (2)

    Cost-optimized design

    Efficient architecture delivering high performance at a competitive cost for scalable deployments

  • Material Handling (3)

    Industrial protocols

    Comprehensive support for leading industrial communication standards to enable interoperability

PTlink AM4-TL (png)

Features

  • Built for harsh industrial and mobile environments with protection against water, dust, vibration, and shock
  • Expands controller I/O capabilities via 2x CAN 2.0 interfaces while reducing cabling complexity
  • Supports 9x digital inputs, 3x analog inputs, 3x NTC inputs, 6x high-side outputs, and 2x PWM low-side outputs
  • Built on proven technology building blocks with configurable I/O and support for tailored customer designs

Application areas

  • Construction Machinery

    [Edit] Construction Machinery.jpg

  • Utility Vehicles

    [Edit] Utility Vehicles.jpg

  • Agriculture Equipment

    [Edit] Agriculture Equipment.jpg

  • Marine equipment

    Container Ship Stock Infrastructure And Energy Markets

  • Ground Support Equipment

    [Edit] Ground support equipment.jpg

  • Municipality Vehicles

    Municipality Vehicles.jpg

  • Material Handling

    [Edit] Material handling.jpg

  • Commercial Vehicles

    [Edit] Commercial Vehicles.jpg

Specifications

Processing & Memory
Microcontroller 32-bit Single Core 200MHz
Program Flash 2MB
Memory 520kB SRAM
Storage 4GB eMMC
Interfaces
CAN 2x CAN 2.0 up to 1Mbit/s
Serial RS232/RS485 receiver
Outputs 2x Low-Side (PWM), 6x High-Side DO
Inputs 9x DI, 3x AI
NTC 3x NTC thermistor inputs
Automotive Electrical Compliance
Nominal voltages 12/24V DC
Load Dump ISO 16750-2
Automotive transients
Environmental Compliance
Ambient temperature -40 to +85°C
Thermal Shock IEC 60068-2-14 (Na)
Vibrations IEC 60068-2-64, 1.15Grms
Mechanical Shock IEC 60068-2-27, 50G
Humidity IEC 60068-2-38 (Z/AD), RH=95%
Salt Spray IEC 60068-2-52 (Severity 5)
IP rating IP69K
Chemical resistance
Regulatory
Europe CE
North America FCC
