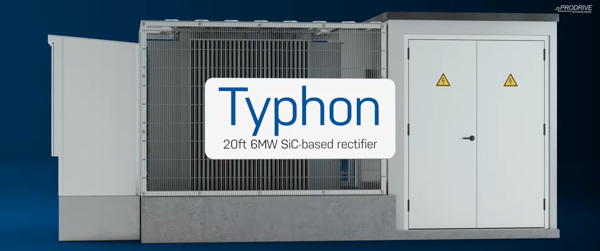

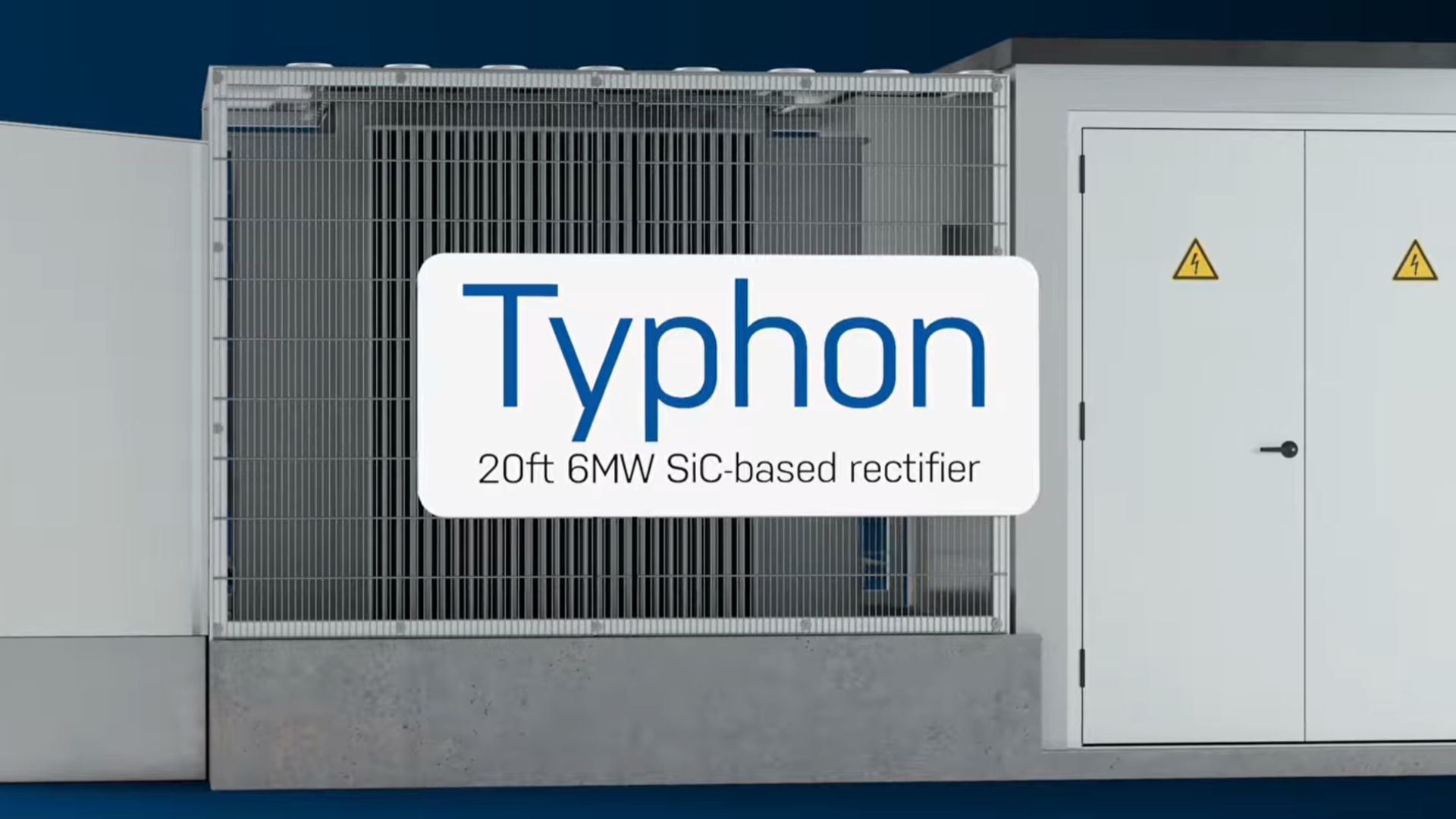

Turnkey solution - Typhon

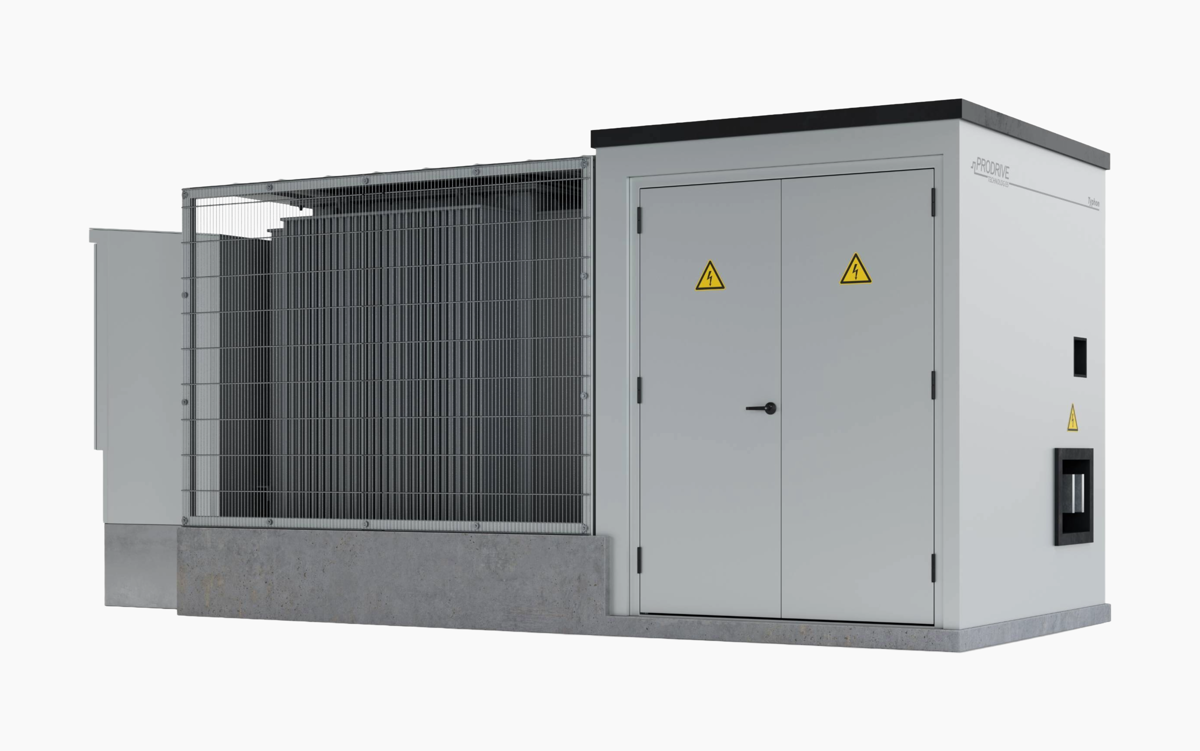

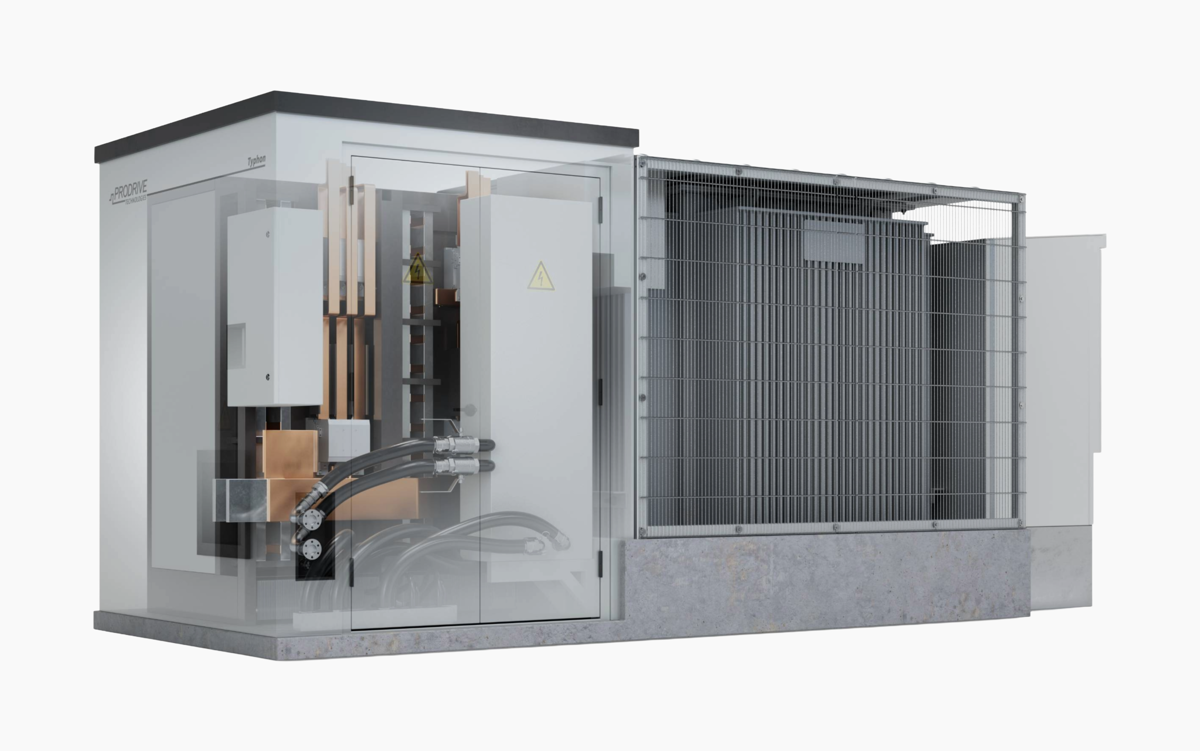

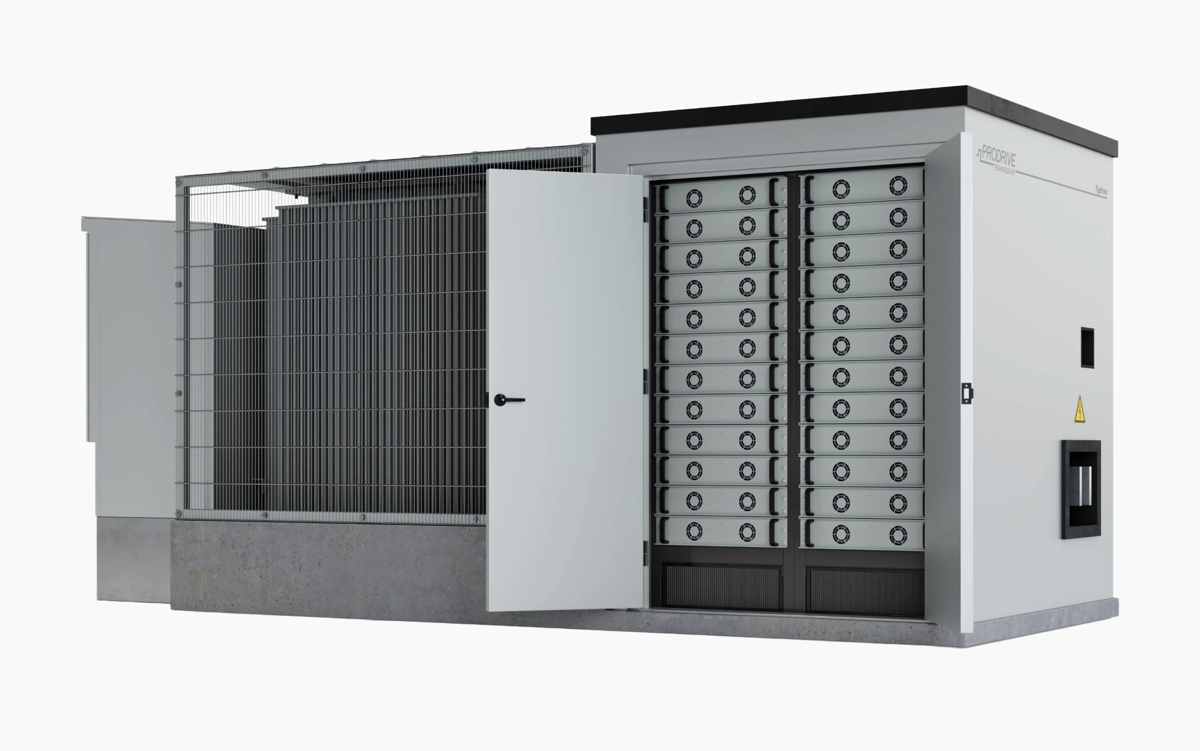

20ft solution with MV switchgear, transformer and 6MW Hydra rectifier

  • Untitled (16).png
  • Untitled (17).png
  • Untitled (18).png

Typhon provides an integrated turnkey solution with MV switchgear (RMU), power distribution transformer and Hydra rectifier all in a 20ft container footprint. Typhon ensures seamless integration with renewable sources featuring a compact, space saving design. Additionally, our modular design allows high reliability and scalability in various levels from MW racks to multi-MW turnkey solutions.

Discuss your project
  • Circular (2).png

    High efficiency

    Delivers 98.3% peak efficiency and 98.1 euro efficiency across the full load range

  • Quality (1).png

    Reliability

    Modular design prevents single-point failures and enables fast replacement

  • Protected (2).png

    Grid stability

    Delivers <1% THDi, fault ride-through, and reactive-power control to meet grid codes

  • Compact (3).png

    Small footprint

    Compact 20‑ft solution delivers up to 6 MW, providing high power density

Benefits

  • Scalability

    Easily scale electrolyser capacity from pilot installations to GW‑scale hydrogen production plants.

  • Fast integration

    Accelerate electrolyser deployment with a pre‑engineered, integrated MV switchgear, transformer and 6MW rectifier

  • Lower cost of hydrogen

    Improve overall electrolyser efficiency, reducing energy losses and operating costs per kilogram of hydrogen

  • Grid-ready operation

    Support stable electrolyser operation with built‑in voltage support and fault ride‑through capability

Application

  • SOEC (Solid Oxide Electrolyzer)

    [Edit] SOEC electrolyzer (small).jpg

  • Alkaline Electrolyzer

    [Edit] Alkaline electrolyzer (small).jpg

  • PEM Electrolyzer

    [Edit] PEM electrolyzer (small).jpg

Technical specifications

Power 6 MW / 6.6 MVA
Input MV voltage range 6–36 kV
Technology SiC MOSFET
Output DC voltage range 0–1500 Vdc
Output DC current range 0–9600 Adc
Peak efficiency 98.3%
Euro efficiency 98.1%
Typhon combined power Up to 24 MW
THDi <1%
Cooling method Water-cooled
Environmental condition IP54 / outdoor
Standards IEC (other standards on request)

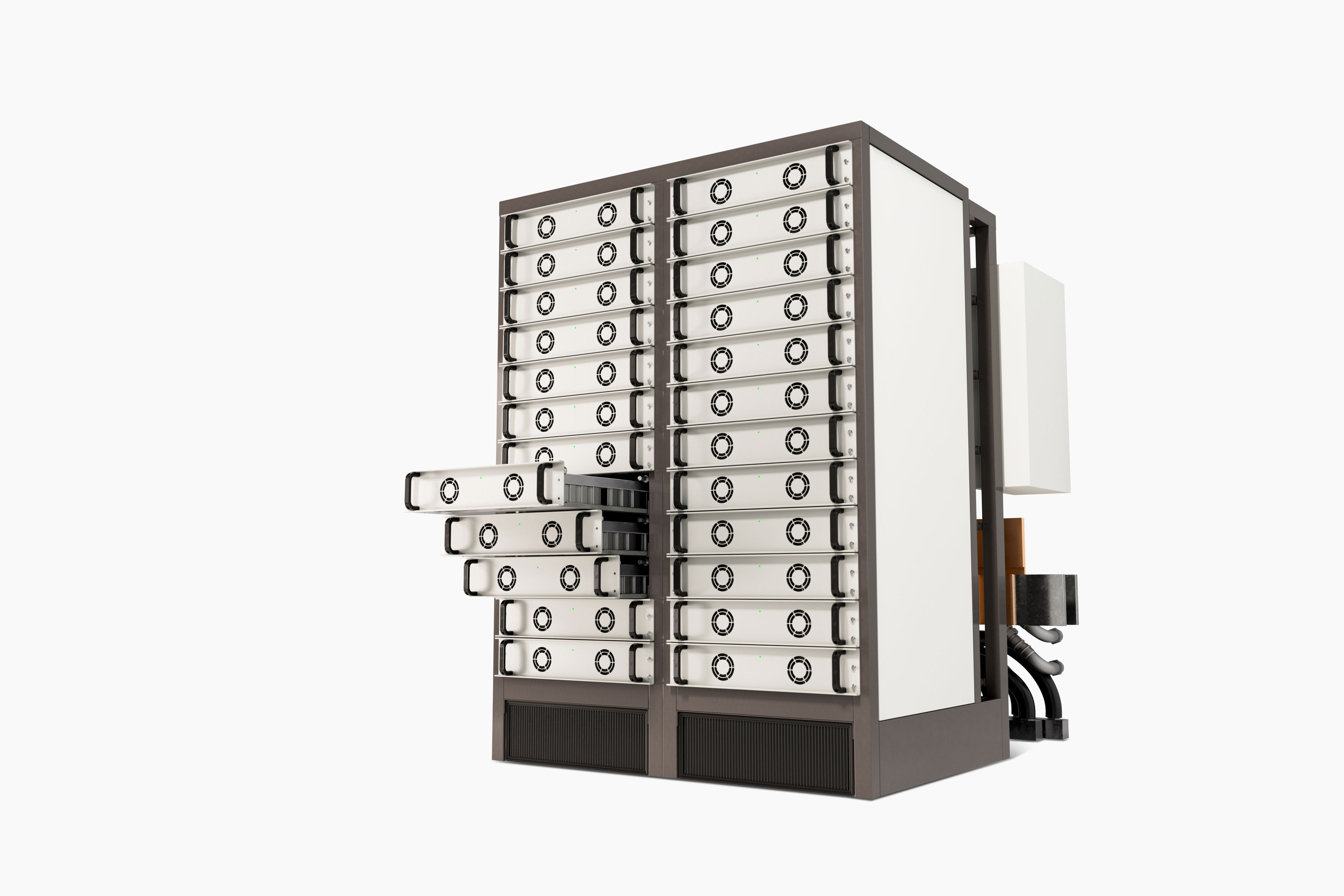

Scalable SiC based rectifier
