Motion controllers - Arcas

Compact, high-performance motion controller for synchronized multi-axis systems

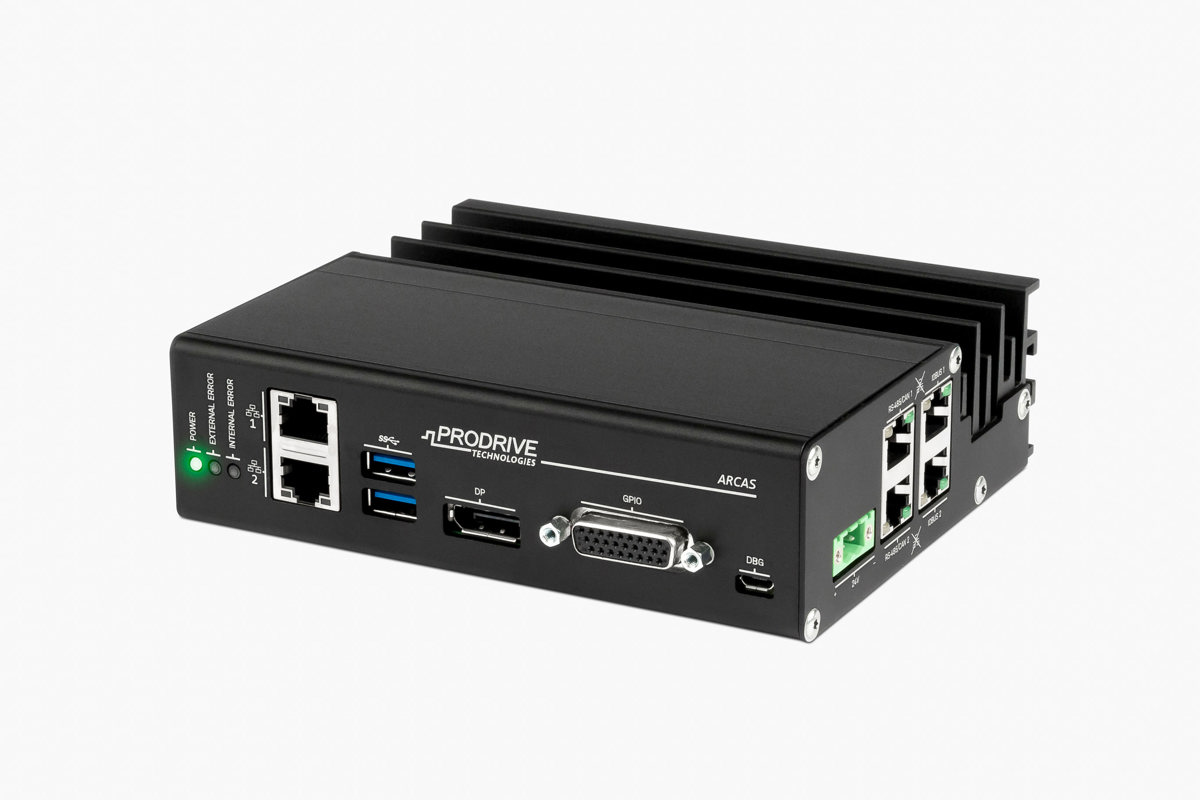

  • Motion controller Arcas-Elevated-Left.jpg

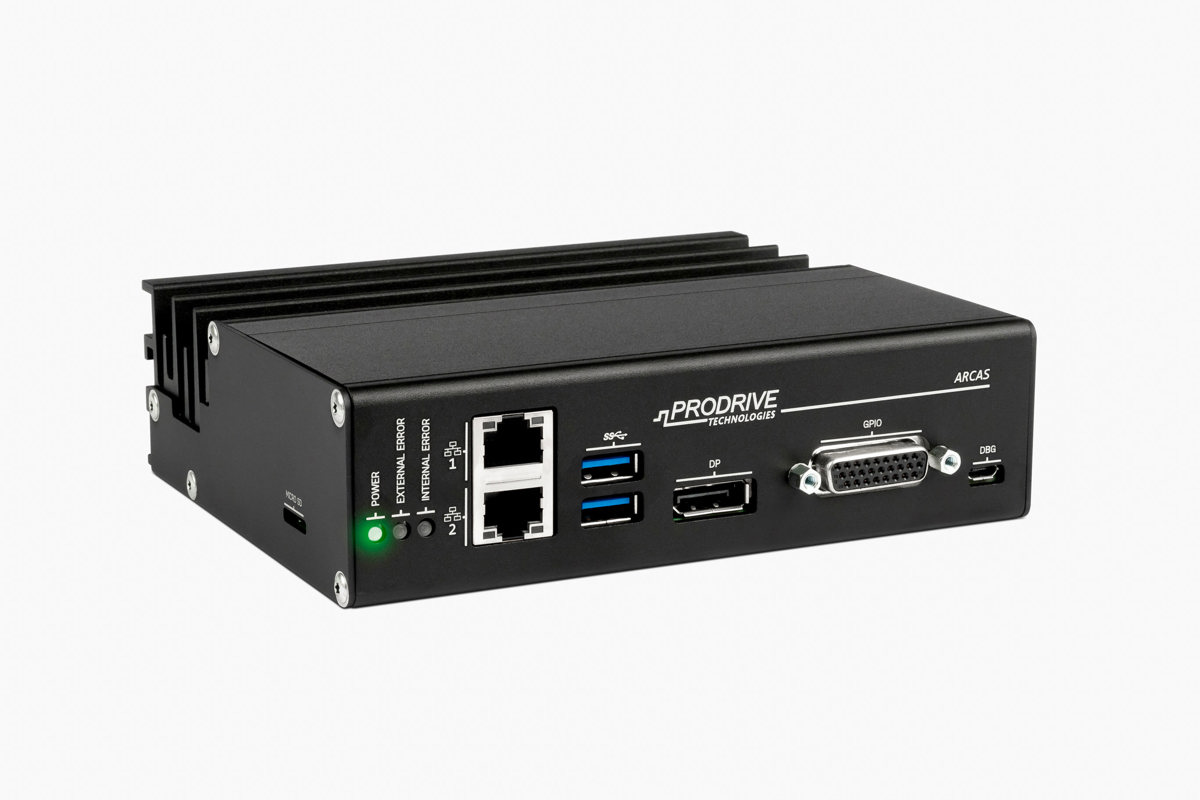

  • Motion controller Arcas-Elevated-Right.jpg

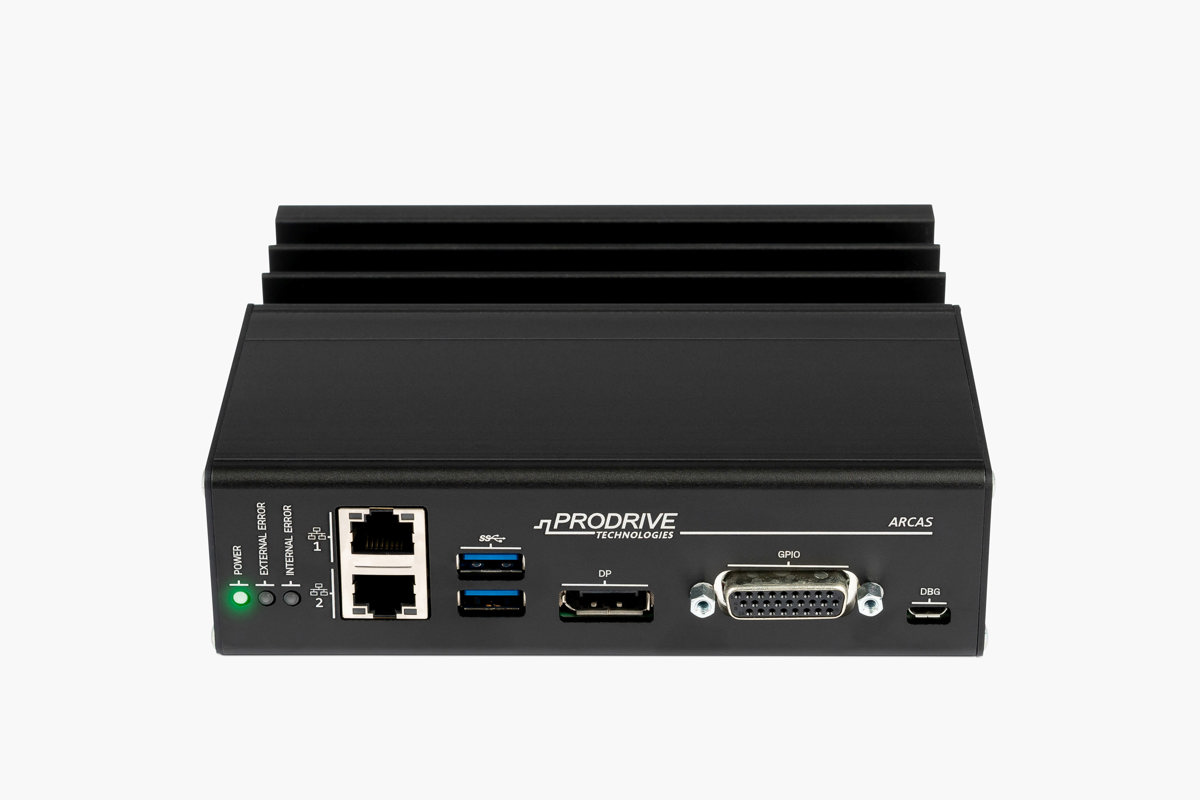

  • Motion controller Arcas-Elevated-Top.jpg

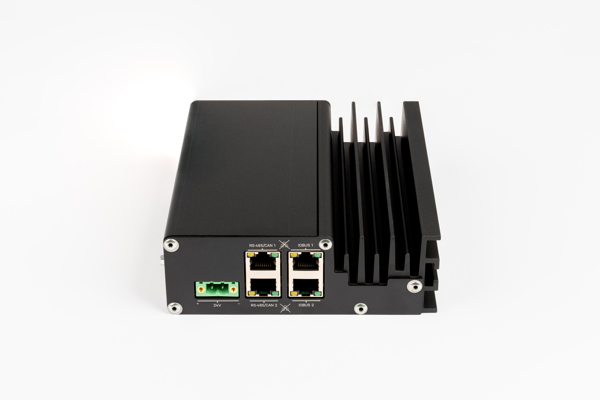

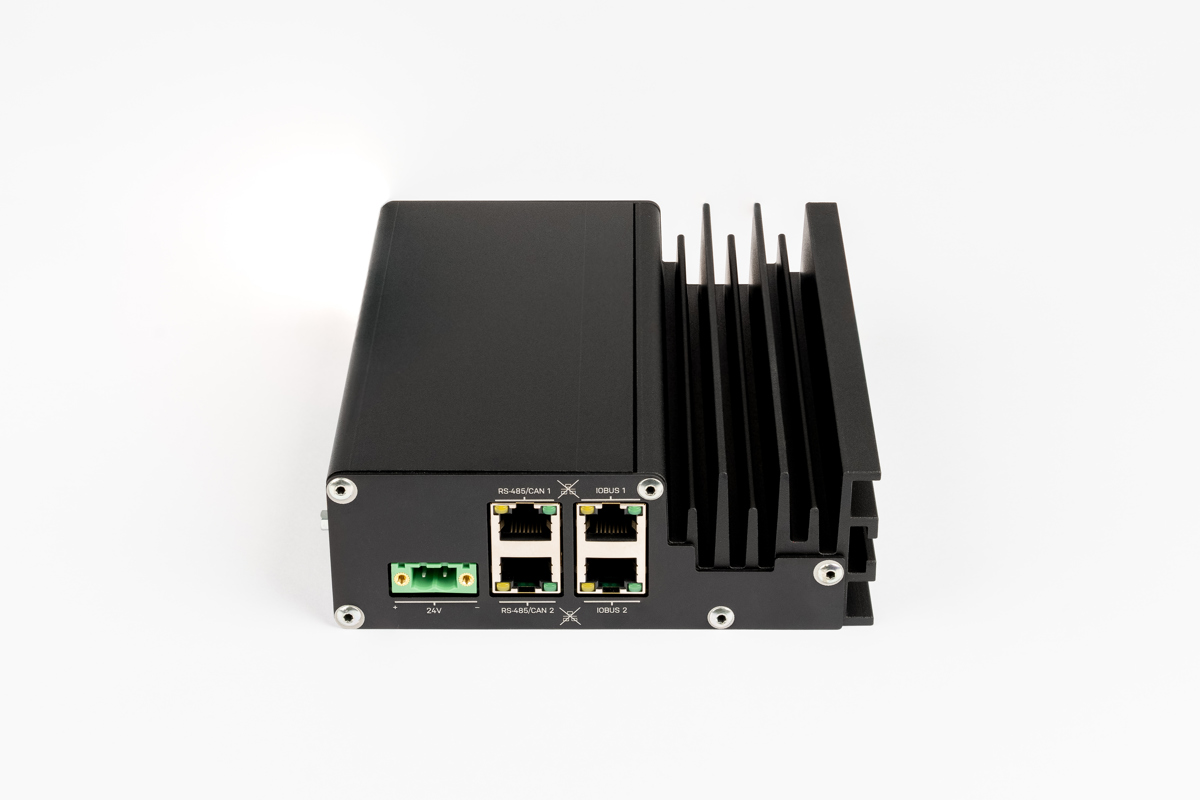

  • Arcas_side v1.1.jpg

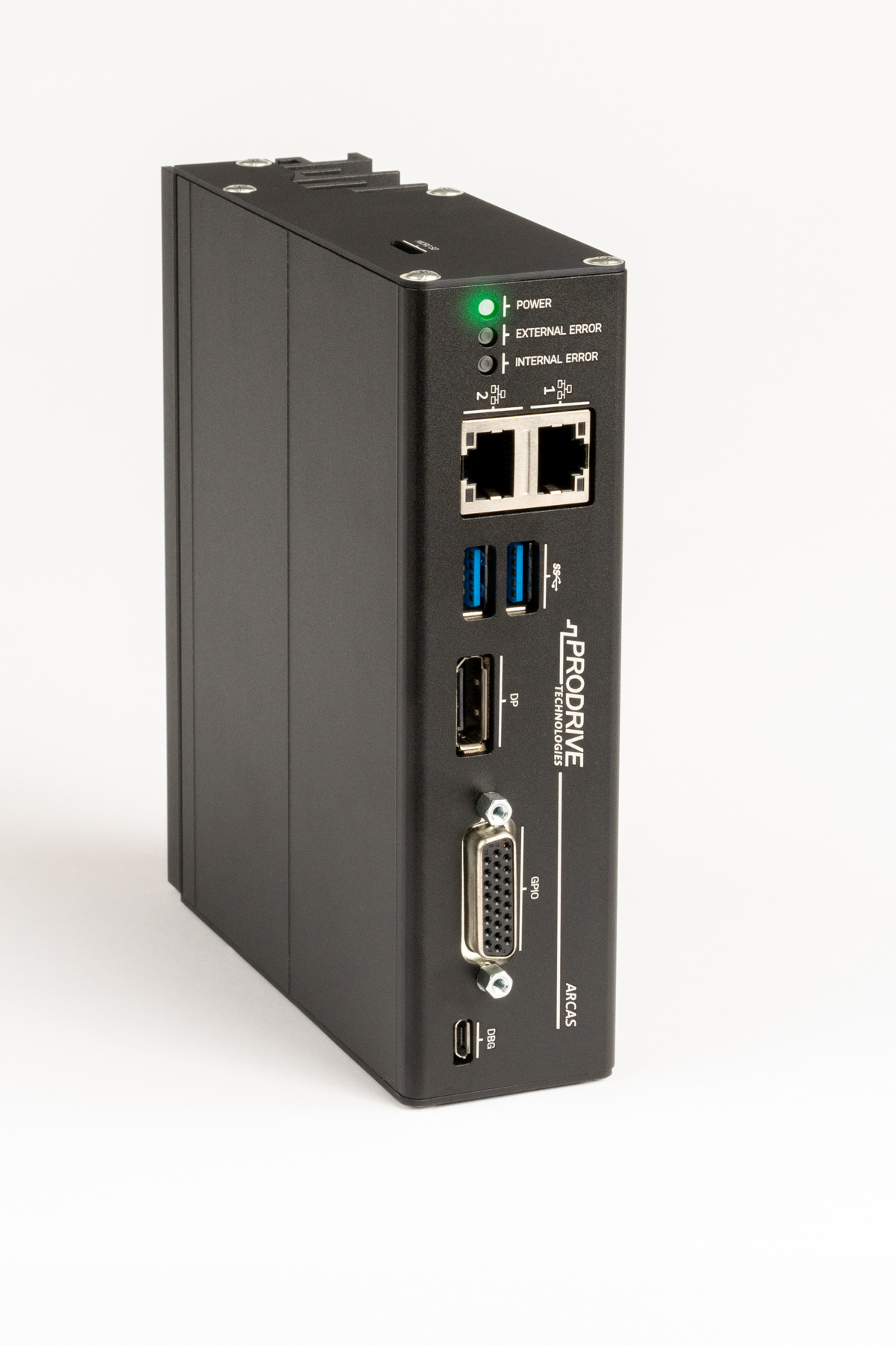

  • Arcas_standing v1.1.jpg

The Arcas controller is a compact, high-performance motion control for applications like electronics manufacturing, die-packaging, AOI, medical imaging systems, and more. It synchronizes up to 12 motor axes at a 10 kHz update rate, ensuring precise and deterministic control for demanding applications.

Built on a 64-bit Quad Cortex-A53 processor, Arcas combines multi-core processing with Gigabit Ethernet interface for host communication and seamless EtherCAT® connectivity for servo drives and I/O modules. Additional features include two high-speed RS-422 trigger outputs and eight general-purpose 24V I/O lines for maximum flexibility.

With advanced compliance standards and a 10+ year lifecycle, Arcas offers unmatched reliability. It supports panel or DIN rail mounting and meets IEC 61000-6-1 EMC immunity, EN 55011 emissions, and IEC 62368-1 electrical safety requirements.

Developers can optimize and customize motion control using the Prodrive Motion Platform (PMP) software, which provides real-time performance and full control loop flexibility. MATLAB® and Simulink® integration enables the design and implementation of custom algorithms, making Arcas a powerful platform for next-generation automation.

Talk to sales

  • Compact & Powerful

    high performance in a small footprint that enables real-time responsiveness

  • 10 kHz Real-Time EtherCAT Update Rate

    Fast feedback and control loops, ideal for centralized motion control in critical applications

  • Advanced Control Flexibility

    Supports custom control algorithms, giving users the freedom to design optimized motion strategies

  • Versatile I/O Options

    Low latency for critical I/Os

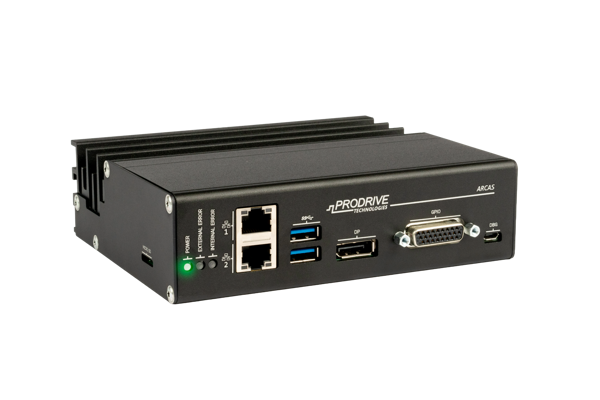

Arcas_oblique v2.1-2.png

Features

  • Synchronizes up to 12 motor axes at 10 kHz update rate
  • 64-bit Quad Cortex-A53 processor for high-performance control
  • Gigabit Ethernet interface for host communication
  • EtherCAT® bus for servo drives and I/O modules
  • Two high-speed RS-422 trigger outputs for position-based events
  • Eight general-purpose 24V I/O lines for versatile integration
  • Compact design for panel or DIN rail mounting
  • 10+ year lifecycle support for long-term reliability
  • MATLAB® and Simulink® integration for custom control loops design
  • Low power consumption (<35W) with wide input voltage range (12–24VDC)

Benefits

  • High Precision

    Delivers deterministic control with 10 kHz update rate for smooth, accurate motion across multiple axes.

  • Low Latency

    Optimized architecture and real-time synchronization minimize delays for demanding industrial and medical applications.

  • Flexibility

    Supports a wide range of applications, from electronics manufacturing and die-packaging to AOI and medical imaging.

  • Compact Design

    Space-saving form factor with panel or DIN rail mounting options for easy integration.

  • Long-Term Reliability

    Compliant with IEC and EMC standards and backed by 10+ year lifecycle support.

  • Advanced Development Tools

    PMP software and MATLAB®/Simulink® integration enable custom algorithm design and real-time tuning.

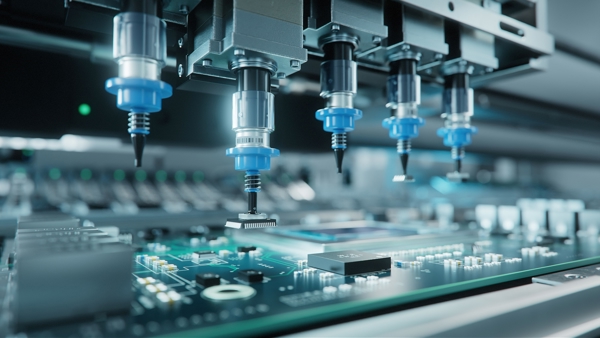

  • Electronics manufacturing

    Electronics .jpg

  • PCB inspection

    PCB Inspection

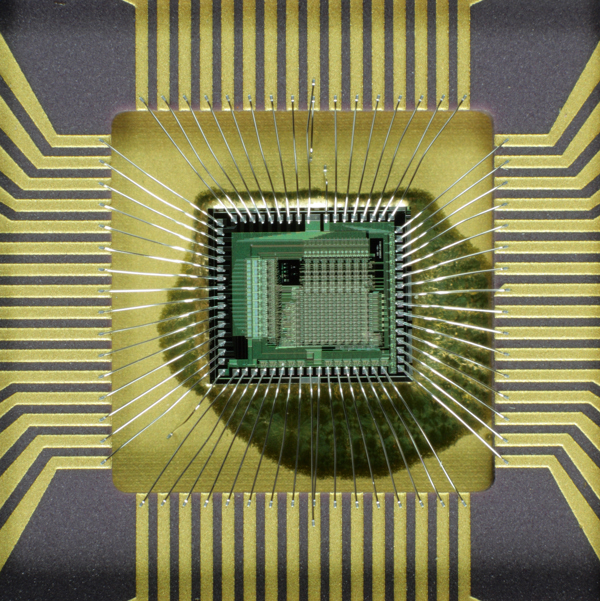

  • Die- packaging systems

    DIE pacakaging system.jpg

Markets & Industries

  • Medical & life sciences


    Edge AI for real-time intelligence

  • Industrial automation

    In-House Development & Manufacturing

    Robotics and automated quality control
Performance
Processor 4-core Cortex-A53 @ 1.5GHz
Memory 8Gb LPDDR4
Internal storage 512Mb flash memory
External storage 2x USB3.0 and 1x MicroSD
Number of axes Up to 12 axes @ 10kHz
Communication
Host interface 1x Gigabit Ethernet
Device interface 1x EtherCAT® bus
I/O
High-speed position-based trigger outputs 2x RS-422 compatible
Isolated digital outputs 4x 24V
Isolated digital inputs 4x 24V
Power supply <35W
Rated input voltage 12 - 24VDC
Mechanical
Dimensions (WxHxD) 158 x 44 x 130mm
Mass <830g
Reliability
Lifetime ≥ 10 Years
